Best Controller for API 2500 (2026)

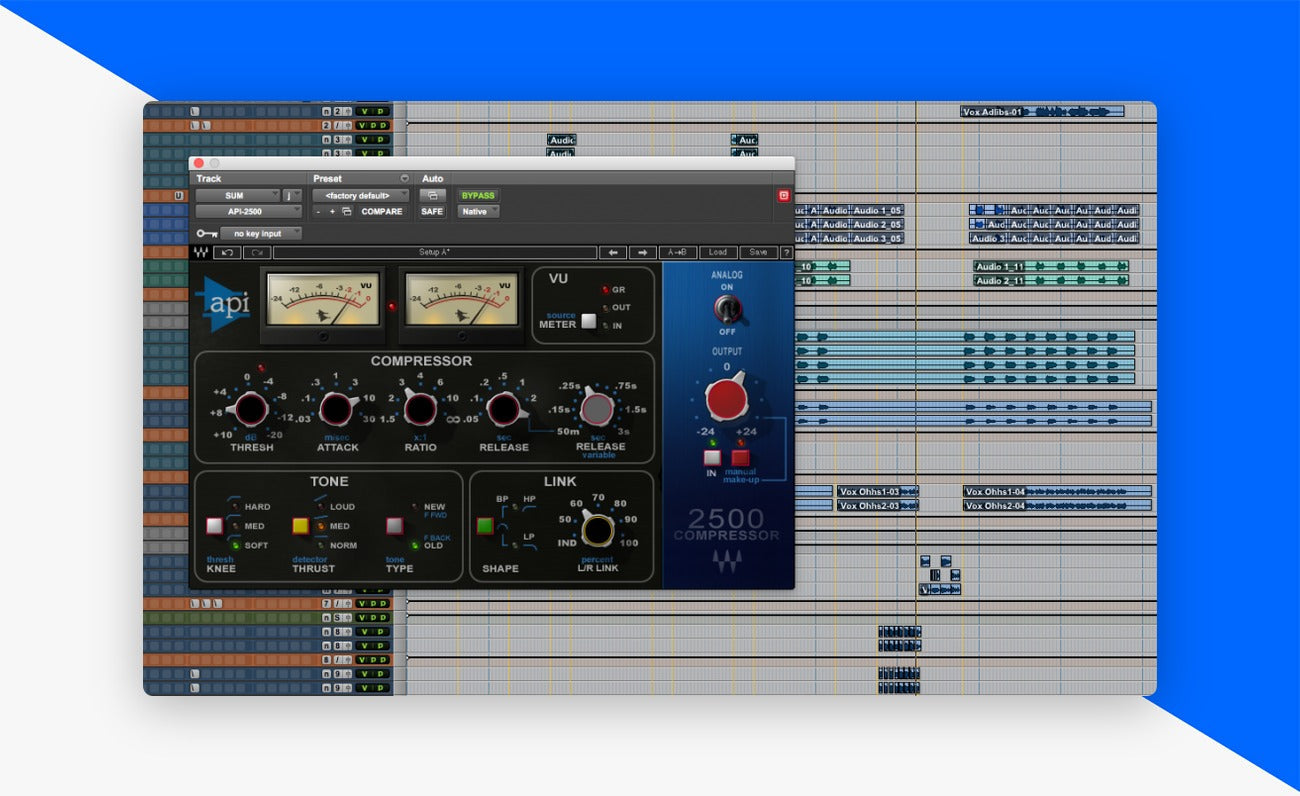

Ask a room full of engineers which bus compressor they reach for when a drum bus needs attitude, and the API 2500 comes up fast. The Waves emulation captures the dual-channel compressor from API's 19-inch rack, the one built around their patented Thrust circuit, with a front panel that reads like a menu of decisions: stepped attack and release, six ratios, a variable knee, old and new compression types, and a stereo link section you can dial by percentage. It's less a set-and-forget glue box and more a tone-shaping instrument that happens to compress.

That's exactly why so many producers end up searching for the best controller for the API 2500. Every one of those decisions is a physical switch or detented knob on the hardware, designed to be clicked through by hand while the drums play. In the plugin, each becomes a small mouse target, and auditioning Old against New or walking the Thrust switch through its three positions turns into a stop-start clicking exercise. Below, I'll cover which API 2500 controls genuinely reward hardware, how the workflow changes with real knobs, and what to look for in a controller for it.

Wiring a generic controller to the API 2500 starts out easy enough. You open the plugin, enable MIDI learn, click Threshold, twist a knob, and repeat. Threshold, Makeup Gain, Attack, Release, and Ratio get you a working front panel in five mappings. But the API 2500's personality lives in its tone section, so you keep going: Knee, Thrust, Type, and now you're at eight and you haven't touched the stereo link controls or the Analog switch yet.

Then the real friction appears. Almost everything on this compressor is stepped. Attack clicks through fixed times from 0.03 to 30 ms, Release steps from 50 ms up to 3 seconds, Ratio jumps between six settings from 1.5:1 to 10:1, and Knee, Thrust, and Type are three-way and two-way switches. A full-travel MIDI knob mapped across a six-position switch gives you no feedback about which step you landed on, so you sweep, overshoot, glance at the plugin, and correct. The whole point of hardware, keeping your eyes off the screen, evaporates.

And none of it persists sensibly. The mappings live in one project, so the next session starts from zero, and the moment you select a different compressor on another bus, those knobs are pointing at nothing. The Auriteq Flow handles all of this differently, with pre-mapped, labeled, detented control, but more on that later. First, which API 2500 controls actually earn a place on hardware.

The short version: you map the API 2500's core panel, Threshold, Makeup Gain, Attack, Release, and Ratio, plus its tone switches to physical encoders, so you can shape bus compression by ear while the track plays, the way the rack unit was designed to be used.

The more useful question is which of those controls deserve your hands most, because on this compressor the character switches matter as much as the threshold.

Here are the API 2500 controls I'd put on hardware first, and why each one benefits from a real knob:

Threshold - The control you'll ride constantly. Bus compression on the 2500 is about creeping into the sweet spot, and the difference between 2 and 5 dB of gain reduction on a drum bus is the difference between punchy and pinned. A physical encoder lets you ease into the needle by ear while the loop plays instead of overshooting with a drag and walking it back.

Makeup Gain - The output stage that compensates for what the compression takes. Keeping it under your other hand means every threshold move gets level-matched immediately, so you're judging punch against punch instead of being fooled by whichever version is louder.

Attack - Stepped from 0.03 ms up to 30 ms, and on drums each step is audible. The fast settings clamp transients for density; the 10 and 30 ms settings let the snare crack through before the compressor grabs. Clicking through the steps on a detented encoder while the beat loops is the fastest way to find where the punch lives.

Release - Steps from 50 ms to 3 seconds. Short releases pump and add energy, longer ones smooth the bus out. Flipping between adjacent steps in time with the track tells your ears more in five seconds than a minute of menu clicking.

Ratio - Six positions from a gentle 1.5:1 up to 10:1. On the 2500 the ratio interacts with the knee and type settings, so the same 4:1 can feel soft or aggressive depending on context. Having ratio on a stepped encoder turns 'what does 3:1 do here' into a one-click experiment.

Knee - Hard, medium, or soft. This sets how gradually the compressor transitions into gain reduction, which changes the whole feel of the attack. Softer knees smooth the grab, harder knees snap. It's a three-way switch you'll actually use once it's under a finger instead of behind a mouse click.

Thrust - The API party trick. Thrust inserts a filter into the detector path so low frequencies drive the compressor less, which means the kick stops pumping the whole mix and the compression tilts toward punch instead of mud. Walking through Normal, Medium, and Loud from hardware while the drums play is the single most fun A/B on this plugin.

Type (Old / New) - Old is feedback-style compression, smoother and more vintage in how it grabs; New is feed-forward, tighter and more aggressive. It's a one-switch personality change, and flipping it in real time against a loop makes the difference obvious in a way that reading about it never will.

Dialing in the API 2500 with a mouse goes like this: you loop the drums, drag Threshold down until the meter shows reduction, click Ratio to 4:1, listen, click the Attack switch a step slower, listen, wonder if Thrust would fix the pumping, click through its three positions, lose track of which one you preferred, and drag Makeup to compensate before bypassing to compare. Every step is a separate aim-and-click into a small target, and somewhere around the fifth adjustment you're mixing with your eyes.

With a controller, the same pass is one continuous act. One hand rides Threshold into 3 or 4 dB of reduction on the backbeat while the other trims Makeup to match. You click Attack one step slower to let the snare through, flip Thrust to Medium and hear the kick stop dragging the compressor down, then rock the Type switch between Old and New to pick the attitude. The loop never stops, and your eyes stay on the needle, or close entirely.

The stepped controls are where hardware pays off most on this plugin. Attack, Release, Ratio, Knee, Thrust, and Type are all switches, and a detented encoder gives each one the positive click the rack unit had. Comparing settings becomes a physical flick back and forth in rhythm with the track, which is exactly how you hear differences this subtle.

There's a compounding effect too. The 2500's controls interact, since knee softens how ratio bites and Thrust changes what the detector even hears, so the best settings usually come from moving two controls against each other while listening. That kind of two-handed exploration simply doesn't happen with a mouse, because a mouse can only be in one place at a time.

A compressor with this many character switches rewards a controller that keeps every decision labeled and one click away. Here's how the Auriteq Flow handles the API 2500.

Pre-mapped out of the box. Load the API 2500 on a drum bus in Ableton, Logic, or FL Studio and the layout is already there: Threshold, Makeup Gain, Attack, Release, Ratio, and the tone switches. No MIDI learn, no template file to maintain. Drop another instance on the mix bus and it's mapped there too, with the same layout every time.

Dynamic displays behind every encoder. Each encoder shows the parameter name and its current value or step, so you can see Threshold at -8 dB, confirm Attack sits on 10 ms, or check that Thrust is on Loud without looking at the plugin window. On a compressor where six of the main controls are stepped, seeing exactly which step you just clicked to removes the guesswork that makes generic controllers frustrating here.

Touchscreen page navigation. The main page carries the core panel, and a swipe reaches the stereo link section, where you can dial the L/R link percentage and detector filter, plus the Analog switch and metering options. The deeper controls stay two touches away instead of buried behind mouse targets.

Custom mappings in seconds. Mixing a live drum room and want Thrust and Type side by side on encoders 1 and 2? Enter mapping mode, click the controls in the plugin, and the new layout is assigned in seconds. It sticks across sessions and can be exported.

In practice: the drum bus needs glue with attitude. You load the API 2500, ride Threshold until the needle dips 3 to 4 dB on the hits, click Attack to 30 ms so the snare cracks, set Release to 0.5 for a little pump, and flip Thrust to Medium so the kick stops hogging the compression. Old type, soft knee, Makeup trimmed to match. The whole conversation happens between your hands and the needle, and the mouse never enters the picture.

The API 2500 earns its place on drum and mix buses because it's more than gain reduction, it's a set of character decisions: how the knee grabs, what the detector hears, whether the circuit feeds back or feeds forward. On the rack unit those decisions are switches you flip by hand while the track plays, and every one of them loses immediacy when it becomes a small mouse target in a plugin window.

A hardware controller restores that immediacy. The essentials are a fine encoder for Threshold with Makeup in reach of the other hand, detented control over the stepped Attack, Release, and Ratio, and one-click access to Knee, Thrust, and Type with labeling that always tells you which step you're on. Auriteq Flow covers all of it with pre-mapped API 2500 support, dynamic displays behind every encoder, and touchscreen access to the link section, with no setup at all.

If the 2500 is your drum bus weapon of choice, putting it on real knobs is one of the most impactful upgrades you can make to how your rhythm section hits.
